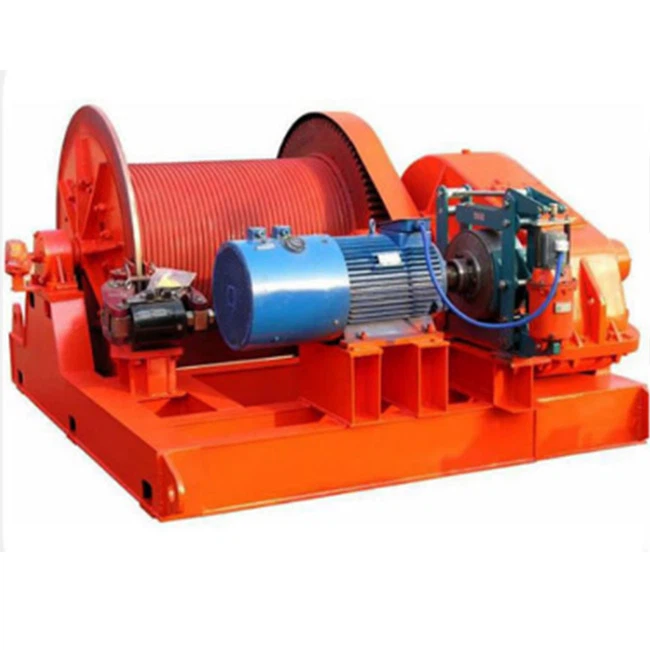

Ob chav nruas Winch rau High Mast
Warranty: 5 xyoos
Qhov chaw ntawm Keeb Kwm: Henan Suav
Control: Chaw taws teeb tswj Nias khawm tswj
Lub luag haujlwm ua haujlwm: A3 ~ A5
Fais fab mov: 3 Theem 380V 50Hz
Xim xim: Raws li koj xav tau
Hauj lwm lawm
ob lub nruas winch rau siab mast Khoom Description
Hluav taws xob winch, tseem hu ua winch, yog lub teeb thiab me me nqa khoom siv uas siv lub nruas los ua kom muaj hlua hlau los yog saw saw los nqa lossis rub cov khoom hnyav. Lub tshuab hluav taws xob winch tuaj yeem nqa cov khoom hnyav vertically, horizontally lossis obliquely. Lub tshuab winch tau muab faib ua peb hom: phau ntawv winch fais winch thiab hydraulic winch. Feem ntau yog hluav taws xob winch. Nws tuaj yeem siv ib leeg lossis ua ib feem hauv cov tshuab xws li nqa, kev tsim kho thiab mine winch. Nws yog dav siv vim nws txoj haujlwm yooj yim, ntau txoj hlua winding thiab yooj yim txav. Nws yog tsuas yog siv rau cov khoom nqa los yog lub tiaj tus hauv kev tsim kho, kev txuag dej, hav zoov, mines, docks, thiab lwm yam.
Cov khoom kos duab
ob-nruas-winch-rau-siab-mast nta
- Lub tshuab hluav taws xob hloov hluav taws xob hloov hluav taws xob ua hluav taws xob los ntawm lub cev muaj zog los ntawm lub cev muaj zog 1, uas yog, lub rotor ntawm lub cev muaj zog tig thiab tawm, thiab tsav lub kauj 6 mus rau tig tom qab decelerated los ntawm V-siv 2, ncej 3, thiab lub zog 4 thiab 5. Lub nruas cua cov hlua hlau hlau 7 thiab dhau los ntawm lub pulley thaiv 8, 9, kom lub crane nuv 10 lifts los yog tee lub load Q, converts mechanical zog rau txhua yam kev ua hauj lwm, thiab ua tiav cov ntsug tsheb thauj mus los thiab loading thiab unloading. lub nra.
-
Technical parameter
| Hom | Rated load (KN) | Rated ceev | hlua muaj peev xwm (m) | hlua txoj kab uas hla | Electromotor yam (KW) | Qhov loj me (mm) | Lub zog (KW) | Qhov hnyav (KG) |
| JM 10 | 100 | 10 | 4800 | 30 | YZR225M-6 | 1980*2650*850 | 30 | 6000 |
| JM 16 | 160 | 11 | 4000 | 34.5 | YZR250M-6 | 3350*1920*1320 | 45 | 9500 |
| JM 20 | 200 | 11 | 3600 | 39 | YZR280M-6 | 3500*1960*1320 | 55 | 10000 |
| JM 32 | 320 | 10 | 3200 | 52 | YZR280M-6 | 4330*2350*1760 | 75 | 16000 |
Packing & shipping
Cim npe nrov: ob chav nruas winch rau siab mast Tuam Tshoj, manufacturers, lwm tus neeg, customized, hais, muab, nqe
