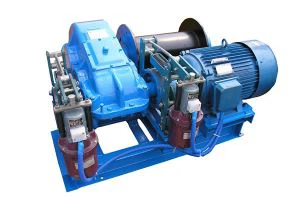

Cov Khoom Piav QhiaElectric Winch 15 Nyhav Ib Toos
Cov Khoom Paramenters
Qauv | Nyob thauj khoom (KN) | Nyob nrawm (m / min) | Hlua muaj peev xwm (m) | Hlua txoj kab uas hla (hli) | Lub cev muaj zogqauv | Lub cev muaj zog qauv (KW) | Tag nrhoqhov ntev (hli) | Tag Nrhoqhov hnyav (kg) | |
JM1 | 10 | 15 | 100 | 9.3 | Y112M-6 | 3 | 620*701*417 | 270 | |
JM2 | 20 | 16 | 150 | 13 | Y160M-6 | 7.5 | 945*996*570 | 550 | |
JM3.2 | 32 | 10 | 150 | 15.5 | YZR16M2-6 | 7.5 | 1430*1160*910 | 1100 | |
JM5 | 50 | 10 | 250 | 21.5 | YZR160L-6 | 11 | 1235*1230*805 | 1500 | |
JM8 | 80 | 8 | 250 | 26 | YZR180L-6 | 15 | 2090*1475*956 | 2600 | |
JM8B | 80 | 9.5 | 350 | 26 | YZ180L-6 | 15 | 1075*1589*985 | 2500 | |
JM10 | 100 | 8 | 170 | 30 | YZR200L-6 | 22 | 2090*1475*956 | 3000 | |
JM10B | 100 | 9.5 | 250 | 30 | YZR200L-6 | 22 | 1705*1598*985 | 3500 | |
JM12.5 | 20 | 8 | 300 | 34 | YZR225M-6 | 30 | 2880*2200*1550 | 5000 | |
JM13.5 | 32 | 5 | 290 | 28 | YZP225S-8 | 22 | 2990*2363*1650 | 6500 | |
JM16 | 32 | 10 | 500 | 37 | YZR250M2-8 | 37 | 3750*2400*1850 | 8800 | |
JM20 | 50 | 10 | 600 | 43 | 45YZR280S-8 | 55 | 3950*2560*1950 | 9900 | |
JM25 | 50 | 9 | 700 | 48 | YZR280M-8 | 55 | 4350*2800*2030 | 13500 | |
JM32 | 50 | 9 | 700 | 56 | YZR315S-8 | 75 | 4500*2850*2030 | 14800 | |
JM50 | 50 | 9 | 800 | 65 | YZR315M-8 | 90 | 4930*3050*2250 | 19500 | |
JM65 | 50 | 10.5 | 3600 | 64 | LA8315-8AB | 160 | 5900*4680*3200 | 46000 |
Cov Cuab Yeej Siv Kev Nyab Xeeb: 1. Ob npaug txwv hloov. 2. Kev tiv thaiv tshaj kev tiv thaiv tam sim no 3. Tsis. 4. Nyhav tshaj tiv thaiv cov cuab yeej. 5. Lub nres tsheb kub ceev.
Cov ntsiab lus duab
Thov
Peb Zoo
Cov khoom ntim khoom
1.Hoist thiab qhov hluav taws xob yuav tau ntim los ntawm plywood crate, rau kev zam kom tsis txhob tawm ntawm cov khoom tawg thiab cuam tshuam thaum lub sijhawm khoom xa tuaj. 2.Girders thiab lwm qhov chaw tseem ceeb yuav tau ntim los ntawm cov ntaub qhwv yas, rau kev tiv thaiv xeb los ntawm soppy lub sijhawm thaum lub tsheb thauj mus los. 3. Tsuas yog qhov zoo tshaj plaws kev thauj xa mus los rau kev txuag koj cov nqi ntau ntawm nyiaj txiag, kev ruaj ntseg thiab sijhawm.
Kev nthuav qhia
Kev pab cuam tom qab muag
Cim npe nrov: hluav taws xob winch 15 tuj Tuam Tshoj, tuam ntxhab, lwm tus muag khoom, kho kom zoo nkauj, hais, muab, nqi
