Container Handling Crane

Qhov chaw ntawm Keeb Kwm: Henan
Lifting qhov siab: 2m-20m
Hoist hom: Hluav taws xob los yog phau ntawv
Khoom siv: Hlau
Kev mus txawv tebchaws: Hluav taws xob
Xim: Customized
Warranty: 5 Xyoos
Customization: txais

Xa kev nug

Hauj lwm lawm

thawv tuav crane ua haujlwm yam ntxwv

Nkoj-rau-shore cranes, rail mounted gantry thawv cranes, thiab roj hmab homgantry thawv cranes yog cov tshuab tshwj xeeb rau lub thawv terminal yard ua haujlwm. Nws muaj qhov zoo ntawm kev hloov pauv yooj yim, kev ua haujlwm ruaj khov, kho kom raug, kev ua haujlwm nrawm, kev sib tsoo siab, thiab hneev taw me me. Nws yog qhov tsim nyog rau kev thauj khoom thiab thauj khoom ntawm cov khoom hnyav hauv cov chaw nres nkoj thiab cov chaw nres nkoj dej. Tom qab tau nruab nrog lub thawv ntim khoom, lub thawv tuaj yeem nqa tau. Lub tshuab no siv AC zaus hloov pauv ceev kev tswj hwm, PLC tswj, thiab txhim kho qhov ntse "kev saib xyuas thiab tswj qhov system".

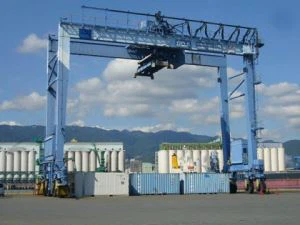

rail mounted gantry crane1

thawv tuav crane Model Parameters

Caoacutt ntawm Spreader			T	30.5	35	40.5	50
Ua Haujlwm Ua Haujlwm				A6	A6	A6	A6
Ntev (m)			S	35	35	35	35
Hauv paus (m)			B	16	16	16	16
Lifting qhov siab (m)			H	15.4	15.4	18.2	18.2
Ceev	Hoisting	Nrog Full load	m/min	12	12	18	18
	Hoisting	Tsuas yog Winty Spreader		24	24	36	36
	Tsheb thauj mus los			60	60	70	70
	Mus ncig			45	45	45	45
Tag Nrho Lub Zog			kws	~200	~230	~255	~300
Max. ua hauj lwm Load of Log			kn	260	260	280	300
Crane Rail				P50	P50	P50	qw 80
Hwj chim Source			Peb-theem AC 50Hz 380V

thawv tuav crane Model Drawing

Lub thawv tuav crane Nws yog tsim los ntawm steel qauv, hoisting mechanism, micro-rotating mechanism, spreader anti-sway ntaus ntawv, lub laub khiav thiab steering mechanism, trolley khiav mechanism, thawv spreader, diesel generator hluav taws xob cov khoom thiab lwm yam tsim nyog kev nyab xeeb thiab auxiliary khoom. . PLC tswj qhov system thiab CMMS qhov kev soj ntsuam txhaum cai tuaj yeem siv tau, nrog kev saib xyuas qhov tsis zoo thiab kev kuaj mob, kev sib txuas lus txaus thiab teeb pom kev zoo, kev nyab xeeb thiab txhim khu kev qha

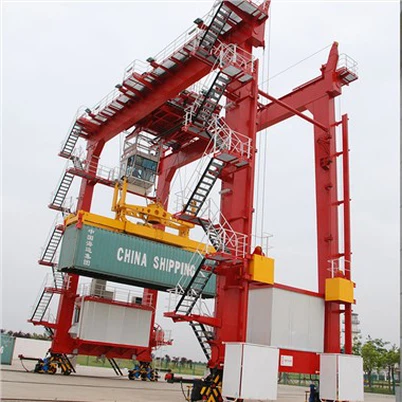

rail mounted gantry crane
