Warehouse Top Running Electric Overhead Travelling Grab Bridge Overhead Crane
Warehouse Top Running Electric Overhead Travelling Grab Bridge Overhead Crane
Warehouse Top Running Electric Overhead Travelling Grab Bridge Overhead Crane
Warehouse Top Running Electric Overhead Travelling Grab Bridge Overhead Crane
Warehouse Top Running Electric Overhead Travelling Grab Bridge Overhead Crane
Warehouse Top Running Electric Overhead Travelling Grab Bridge Overhead Crane

Choj Nyiaj Siv Ua Haujlwm Crane

Tus choj crane siv qhov rub los ua tus tshaj tawm tuaj yeem ua haujlwm xws li tsis ntim khoom, thav khoom, thim rov qab, rov ua dua thiab tuav hauv kev npaj ntawm cov khoom siv raw. Grab choj cranes yog siv dav hauv kev nqa ua haujlwm ntawm cov khoom lag luam zoo tib yam hauv ntau lub chaw ua haujlwm thiab mines, thiab yog ...

Xa kev nug

Hauj lwm lawm

Cov Khoom Muag Khoom Tshwj Xeeb

QD Hom Ob Npaug-beam Hook Choj Crane1.Nws yog lub luag haujlwm hnyav hom nyiaj siv ua haujlwm crane uas txaus siab siv ntau dhau los, thiab Haum rau ib puag ncig (Kev Ntsuas Kub, Cov Khoom Pov Thawj thiab lwm yam);
2.Nws muaj cov yam ntxwv ntawm Hnyav lub luag haujlwm, siab ua haujlwm, Lub neej ntev ntev, yooj yim rau Nruab thiab kho.
3.Thaum siv rau kev nqa khoom thauj, crane tuaj yeem nruab nrog dai nqaj hlau nplaum lossis hlau nplaum chuck lossis Grab lossis C nuv.

Yam khoom	QD Hom Ob Npaug-beam Hook Choj Crane
Chaw thau khoom muaj peev xwm	5~450/80t
Hoisting qhov siab	1~15m
Mev	1~10m
Hoisting mechanism	Hoist trolley
Ua Haujlwm Chav Kawm	A5~A6
Lub hwj chim muab	380V 50Hz 3Ph lossis kev cai tsim

Nta Tseem Ceeb
1) Lub peev xwm: customized raws li cov neeg xav tau kev pab
2) Span: customizedaccording rau cov neeg siv khoom xav tau
3) Qeb Ua Haujlwm: A5 ~ A8
4) Lub nra hnyav tswj tau muaj peev xwm
5) Kev ua haujlwm siab
6) Yooj yim rau kev tu thiab kho
7) wireless tshem tawm yog muaj

8) Cov chav txaj chav tswj hwm raws li kev xaiv.

LH qauv ob chav girder nyiaj siv ua haujlwm crane

Nws siv A5 ua haujlwm pab pawg ua haujlwm kom lis nruab nrab cov khoom hnyav nqa khoom ua haujlwm.

QD hom ob chav girder nyiaj siv ua haujlwm crane

Nws haum rau feem ntau ntawm cov haujlwm hnyav nqa ua haujlwm uas yog tus tswv ua haujlwm A5-A6 pawg ua haujlwm pab pawg.

QE hom ob chav girder nyiaj siv ua haujlwm crane

Muaj 2 qhov ywj pheej trolleys mus ncig ntawm cov nqaj hlau loj, thesynchronous lub lag luam tuaj yeem pom tau kuj. Cov crane no tau tsim nyog rau cov khoom nqa ntev xws li: ntoo, raj ntawv, yeeb nkab thiab bar.

QZ hom ob chav girder nyiaj siv ua haujlwm crane

Grab crane tau dav siv rau steel Hoobkas txhawm rau txhawm rau khawb thiab chaw nres nkoj txhawm rau txhawm rau muab xuab zeb thiab pob zeb, lossis txhawm rau txhawm rau tuav gabage.

QC hom ob chav girder nyiaj siv ua haujlwm crane

Nws nruab nrog lub tshuab hluav taws xob nrog lub ntsej muag txhawm rau ua kom cov khoom siv, qhov kub lossis txias lossis kub kub cov khoom siv hlau tshem tawm.

QL hom ob chav girder nyiaj siv ua haujlwm crane

Nws txais yuav cov kev sib hloov nqa cov nqaj hlau nrog electro maget lossis tig trolley kom paub cov khoom tso tawm.

YZ hom ob chav girder nyiaj siv ua haujlwm crane

Nws feem ntau yog siv rau ntawm qhov chaw uas th emolten hlau nqa, nws kuj muaj ob chav nqaj xaiv thiab plaub nqaj xaiv kom haum.

QDY hom ob chav girder nyiaj siv ua haujlwm crane

Nws feem ntau yog siv rau ntawm qhov chaw uas th emolten hlau nqa, kev tiv thaiv thermal tiv thaiv yog ntxiv rau hauv qab ntawm lub ntsiab girder.

Cov duab ntxaws ntxaws

Lub ntsiab qhov nqaj thiab kawg lub rooj log

1. Tus choj choj girder yog tsim los kom tam sim no tus CMAA cov lus qhia tshwj xeeb thiab tuaj yeem tsim kom tau raws li lwm cov cai hauv zos thiab kev cai.

2. Muab ob npaug rau tsav lub cev muaj zog yog tus qauv, Lwm hom kev tsav tsheb yog muaj thaum thov.

3. Lub cav tsheb nqaj hlau yog flanged nrog kev tiv thaiv kev txhuam.

4. Cov nqaj hlau rhuav tshem thiab cov roj hmab sib tsoo yog cov qauv

Nqa machenism

1. Lub tshuab hoisting muaj lub zog Kuangshan hnyav ua haujlwm hom kev lag luam txheem xaim hlua ntawm lub tog taub hau qis trolley.

2. Lub cev muaj zog muaj kiv cua ua kom txias, hoist lub luag haujlwm nrog Chav" F" rwb thaiv tsev.

3. Zog yog precision machined los ntawm alloy steel thiab induction hardened. Txhua qhov iav yog nyob ntawm cov hlau tsis muaj zog thiab yog cov roj txaws.

4. Cov hlau tsis xaim hlua drums yog precision tshuab.

Hluav taws xob tswj tshooj

Cov hluav taws xob vaj huam sib luag yog tsim nyog rau kev ua haujlwm dhau ntau qhov thiab ntau yam qauv tsim qauv. Lub Circuitry yog fuseless nrog tsim kom zoo nyob rau hauv ducts thiab cov terminals khaws cia tsis muaj ntsia hlau kom tso cai yooj yim kho thiab kho. Kev tiv thaiv cov cuab yeej muaj nyob rau hauv txhua pab pawg tsav tiv thaiv lub cev muaj zog ntau dhau, uas ua rau txoj haujlwm tiav.

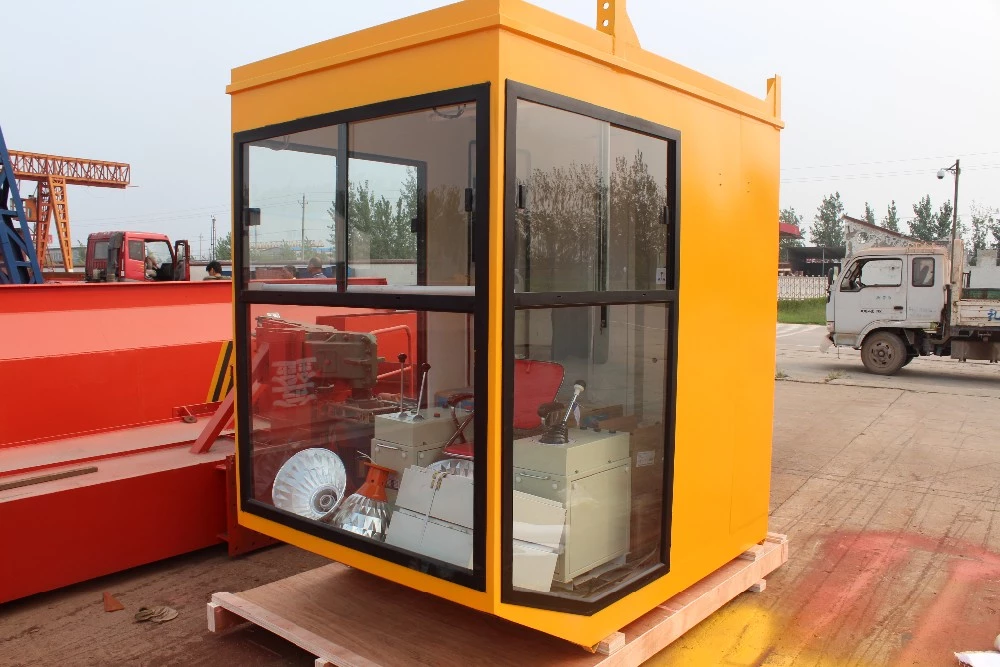

Alarm chav tsev

Cov tswj hwm lub tsev muaj xws li lub rooj hloov kho tau, insulating lev rau hauv pem teb, ob chav npau ntog iav rau lub qhov rai, hluav taws tua hluav taws, cua ntxuam, cua txias;
