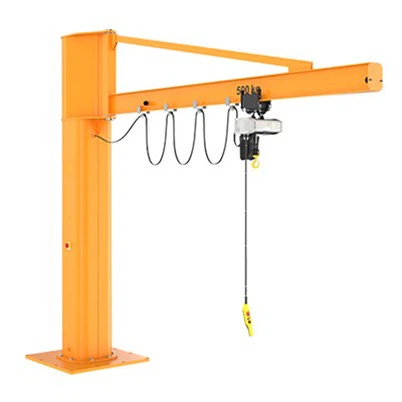

Bz Model 1ton Pem Teb Mounted Jib Crane

Rated Lifting Moment: Customizable
Hoisting Mechanism: Hlau hlua / saw hlua hluav taws xob hoist
Lifting Qhov siab: Cov neeg siv khoom xav tau
Txoj kev tswj hwm: tswj chaw taws teeb
Tom qab Warranty Service: Video technical support
Xim: Customized
Qhov xwm txheej: Tshiab
Warranty: 5 Xyoos
Qhov chaw ntawm Keeb Kwm: Henan, Suav

Xa kev nug

Hauj lwm lawm

Khoom Description

Lub zog ua haujlwm ntawm jib crane yog lub teeb. Lub crane yog tsim los ntawm ib kem, slewing caj npab slewing tsav ntaus ntawv thiab hluav taws xob hoist. Qhov qis kawg ntawm kab yog tsau rau ntawm lub hauv paus pob zeb los ntawm thauj tog rau nkoj bolts. I-beam khiav hauv txoj kab ncaj nraim los ntawm sab laug mus rau sab xis thiab nqa cov khoom hnyav. Lub jib ntawm lub crane yog ib tug hollow steel qauv nrog lub teeb yuag, loj span, loj lifting muaj peev xwm, economical thiab check. Lub built-in mus txawv tebchaws mechanism txais tshwj xeeb engineering yas mus ncig teb chaws log nrog dov bearings, uas muaj me me kev sib txhuam thiab ceev ceev taug kev; tus qauv me me loj yog tshwj xeeb tshaj yog haum rau kev txhim kho qhov sib nqus stroke.

jib cranes7

Cov khoom parameter

Qauv	LZ-125	LZ-250	LZ-500	LZ-1000	LZ-2000	LZ-3000
Rated Peev Xwm (KG)	125	250	500	1000	2000	3000
Max.ua haujlwm vojvoog R2 (m)	L=200 hli
Lifting ceev (m / min)	8/2	4/1,10/2.5	5/1.25,10/2.5	5/1.25,8/2	4/1	4
Kab rov tav khiav ceev (m / min)	7,14,28
Elective zog	380-440V, 3-PHASE, 50/60Hz
Hluav taws xob lub cev muaj zog	Rotating lub cev muaj zog (kw)	0.37	0.37	0.37 0.55	0.37 0.55	0.55 0.75 1.1	0.55 0.75 1.1

Cov khoom kos duab

Cov khoom nta

Jib cranes, tseem hu ua jib caj npab cranes, yog ib hom cranes uas muaj cov yam ntxwv sib txawv ntawm lwm hom cranes. Nov yog qee cov yam ntxwv tseem ceeb ntawm jib cranes:

1. Articulating caj npab: Jib cranes yog nruab nrog ib tug articulating caj npab, los yog ib tug jib, uas yog ib tug kab rov tav kab uas txuas los ntawm ib tug pivot point. Lub caj npab no muab kev yooj yim thiab tso cai rau lub crane mus txog ntau qhov chaw hauv nws lub voj voog ua haujlwm.

2. Versatility: Jib cranes muaj ntau yam ntau yam thiab tuaj yeem siv rau ntau yam kev nqa thiab ua haujlwm. Lawv feem ntau pom nyob rau hauv cov chaw tsim khoom, warehouses, thiab cov chaw tsim kho. Jib cranes tuaj yeem siv los nqa thiab thauj cov tshuab hnyav, cov khoom siv, thiab cov khoom lag luam.

3. Compact Design: Jib cranes paub txog lawv cov qauv tsim, uas ua rau lawv tsim nyog siv rau hauv cov cheeb tsam uas muaj qhov txwv. Qhov loj me me tso cai rau jib cranes tau yooj yim maneuvered, haum rau hauv cov ces kaum nruj los yog nqaim aisles.

4. Yooj yim Installation: Jib cranes kuj yooj yim rau nruab piv rau lwm hom cranes. Lawv tuaj yeem ntsia tau rau ntawm phab ntsa, kab, lossis cov qauv dawb. Qhov yooj yim ntawm kev teeb tsa no ua rau jib cranes yog qhov kev xaiv zoo tshaj plaws rau cov chaw uas yuav tsum tau txav mus los ntawm cov khoom nqa.

5. Txhim Kho Kev Nyab Xeeb: Jib cranes yog tsim los nrog kev nyab xeeb hauv siab. Lawv feem ntau tuaj nrog cov yam ntxwv xws li kev sib hloov xauv, hluav taws xob nres, thiab kev tiv thaiv ntau dhau los ua kom muaj kev nyab xeeb. Tsis tas li ntawd, jib cranes muab kev tswj xyuas meej thiab kev ua haujlwm, txo qis kev pheej hmoo ntawm kev sib tsoo lossis kev puas tsuaj rau cov khoom thauj.

6. Nqi-zoo: Jib cranes yog cov nqi tsim nyog rau kev tuav cov khoom hauv ntau qhov kev lag luam. Lawv feem ntau pheej yig dua piv rau cov nyiaj siv ua haujlwm loj dua lossis gantry cranes. Tus nqi qis, ua ke nrog lawv cov kev siv ntau yam thiab yooj yim ntawm kev teeb tsa, ua rau jib cranes xaiv tus nqi zoo rau ntau daim ntawv thov.Nyob rau hauv qhov xaus, jib cranes paub txog lawv cov caj npab articulating, versatility, compact tsim, yooj yim installation, kev nyab xeeb nta, thiab nqi. - kev ua tau zoo. Cov yam ntxwv no ua rau jib cranes yog qhov kev xaiv nrov rau kev nqa thiab ua haujlwm, tshwj xeeb tshaj yog nyob rau thaj chaw uas muaj qhov chaw tsawg.

jib cranes8
