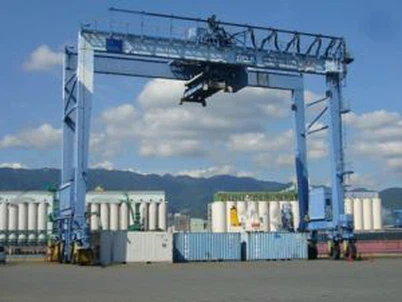

Roj Hmab Tired Gantry Crane
Khoom npe: Thawv Crane
Feature: Gantry Crane
Max. Lifting Qhov siab: 13m
Ntev: 18-35m
Chav ua haujlwm: A6-A8
Industrial Voltage: Raws li koj qhov kev thov
Qhov chaw ntawm Keeb Kwm: Henan, Suav
Warranty: 3 Xyoos
Qhov xwm txheej: Tshiab
Hauj lwm lawm
Rubber Tired Gantry Crane Description
Universal roj hmab-tyred thawv gantry crane (RTG) yog ib qho khoom siv tseem ceeb hauv cov thawv ntim khoom thiab tuav txoj haujlwm tseem ceeb hauv cov chaw nres nkoj niaj hnub. Nws tuaj yeem hloov tau yooj yim los ntawm ntau qhov loj thiab muaj cov yam ntxwv ntawm kev siv qhov chaw siab, kev tsim khoom siab thiab tag nrho cov vaj tsev mus. Txawm li cas los xij, RTG universal siv lub tshuab hluav taws xob diesel teeb tsa lub zog rau tag nrho lub tshuab, uas muaj qhov tsis zoo ntawm cov nqi siab, kev siv txhua hnub thiab cov nqi kho mob, kev siv hluav taws xob siab, cov pa paug paug, thiab cov suab nrov. Raws li kev txheeb cais, kev siv hluav taws xob thoob ntiaj teb RTG kev ua haujlwm ntawm ib lub thawv txheem yog 1.2 txog 2.2 litres ntawm diesel. Tus tshiab roj hmab-tyred thawv gantry crane yog cov cuab yeej siv tshuab loj, thiab lub zog tseem ceeb hauv nws cov txheej txheem tsim khoom yog hluav taws xob. Txij li thaum RTG tshiab yog cov khoom siv hnyav, qhov hnyav ntawm tag nrho lub tshuab yog txo los ntawm 1/3, yog li muaj zog ntau tuaj yeem txuag tau hauv cov txheej txheem ntau lawm.
Rubber Tired Gantry Crane Parameters
kev sib piv ntawm cov khoom parameter
|
Qauv |
LJ35/40-23 |
LightType LJ40-23 |
|
Peev xwm (hauv qab kis) (t) |
35,40 |
40 |
|
Ua Haujlwm |
A7,A8 |
A6,A7 |
|
Ntev (m) |
23.47 |
23.47 |
|
Lifting qhov siab (m) |
12.2~17.8 |
16.5 |
|
Stack Layers/Passing Layers |
3/4~5/6 |
5/6 |
|
Ntim Qauv |
20',40',45' |
20',40',45' |
|
Spreader Rotating Angle |
± 5 degree |
± 5 degree |
|
Hoisting ceev (m / min) |
13/26,23/52 |
12/18,18/28 |
|
Hla mus ncig ceev (m / min) |
50,70 |
24 |
|
Ntev mus ncig ceev (m / min) |
Puv Load-90, Tsis Muaj Load-130 |
Puv Load-20, Tsis Muaj Load-40 |
|
Max.Wheel Load (kN) |
310 |
310 |
|
Tag nrho qhov ntsuas (kW) |
150,230 |
110,150 |
|
Fais fab mov |
Hluav taws xob, Diesel cav, Hluav taws xob-Diesel tsav |
|
Rubber Tired Gantry Crane Drawing
Lub cav nruab rau ntawm lub log tsheb gantry crane (RTG) yog lub tshuab hluav taws xob tsim hluav taws xob siv lub tshuab hluav taws xob tsis siv lub tshuab hluav taws xob, thiab tsuas muaj ob lub nrawm: tsis muaj zog thiab puv ceev. Lub hwj chim ntawm lub tshuab hluav taws xob diesel teeb yog tsim los raws li qhov siab tshaj qhov muaj peev xwm ntawm kev nqa lub thawv hnyav, kom lub tshuab hluav taws xob tseem tuaj yeem khiav ntawm qhov nrawm hauv qab lub teeb load xws li nqa lub thawv khoob thiab hloov mus. Lub zog tsim tawm tsis tuaj yeem siv tag nrho, thiab lub zog ntau dhau tuaj yeem siv rau hauv cov resistor nkaus xwb.
Rubber Tired Gantry Crane Nta
(1) Txais siv "plaub-nruas" ua ke tsav tshuab
Nyob rau hauv cov nqe lus ntawm kev tsim tag nrho, RTG tshiab tau txais plaub txheej ntawm cov hlua hlau nruas, uas tso siab rau pem hauv ntej thiab thim rov qab kev sib hloov ntawm lub nruas kom thim rov qab thiab tso cov hlua hlau kom ua tiav qhov nqa thiab sab nraub qaum ntawm cov khoom thauj. Cov cuab yeej tsav thiab lub nruas yog ntsia rau hauv qab beam ntawm lub gantry. Piv nrog rau RTG dav dav (lub lifting thiab trolley khiav mechanisms yog ob qho tib si teem rau ntawm lub trolley), lub trolley loj thiab qhov chaw ntawm lub ntiajteb txawj nqus ntawm tag nrho lub tshuab yog heev txo, tag nrho cov tshuab qauv optimized, thiab lub luj ntawm tag nrho cov tshuab. yog lightened.
(2) Kev siv hluav taws xob tsav
General RTG yog siv los ntawm lub tshuab hluav taws xob diesel. Txij li thaum lub kaw lus load yog sib txawv thiab nonlinear, thaum lub dav dav RTG yog me ntsis loaded, lub diesel cav khiav ntawm ib feem ntawm qhov ntsuas ceev, thiab lub diesel generator teeb yog tsawg npaum li cas. Raws li kev txheeb cais, tom qab lub cav RTG dav dav pib, lub sijhawm siv rau kev thauj khoom thiab kev thauj khoom yog tsawg dua 50%, thiab lub sijhawm so yog siv tsis siv. Ib qho RTG dav siv li 15 litres ntawm diesel ib teev. RTG tshiab ua haujlwm lub cev muaj zog thiab teeb pom kev zoo yog siv los ntawm lub zog hluav taws xob, thiab tsuas yog lub tshuab hluav taws xob me me ntawm lub tshuab hluav taws xob hluav taws xob tau nruab rau kev hloov pauv, ua tau raws li qhov yuav tsum tau muaj ntawm RTG.
(3) Electric tsav tswj
Cov hluav taws xob RTG txais kev tswj hwm qhov sib txawv ntawm qhov ceev, programmable maub los (PLC) thiab kev tswj xyuas lub tsheb npav los tsim lub tshuab hluav taws xob tswj kom ua tiav kev tswj hwm kev ceev thiab kev tswj hwm. Lub ntsiab tswj ntawm tag nrho lub tshuab yog txuas nrog lub tsheb npav hauv daim ntawv ntawm cov nodes kom paub txog cov teeb liab kev sib txuas lus, uas yog ceev thiab raug. Nyob rau tib lub sijhawm, ntau cov kab teeb liab ntawm cov tswj hwm tau txais kev cawmdim, cov cuab yeej kho vajtse tau yooj yim, thiab tus nqi txo.
Ntim thiab xa khoom
◆ Lub ntsiab girder thiab lub tsheb kawg tau ntim rau hauv cov hnab ntim khoom kom txo tau hnav thaum thauj.
◆ Lub thawv yog tsau nrog cov hlua hlau kom tiv thaiv kev puas tsuaj rau cov khoom siv thaum thauj.
◆ Cov khoom siv hluav taws xob tswj tau ntim rau hauv cov khoom siv plywood zoo kom tsis txhob ya raws, hnub ci thiab xeb.
FAQ
Q: Koj puas tuaj yeem muab kev pabcuam kev cai?
A: Yog lawm, tau kawg. Peb yog cov chaw tsim khoom thiab peb muaj peb tus kheej engineer pab pawg. Lawv tuaj yeem ua haujlwm tsim kho raws li koj xav tau. Qhov tseem ceeb tshaj plaws yog koj yuav tsum qhia peb yam koj xav tau.
Q: Puas muaj cov kws tshaj lij los pab hauv kev teeb tsa?
A: Yog. Peb muaj cov kws tshaj lij kev teeb tsa pab pawg thiab tau mus rau ntau lub teb chaws los pab hauv kev teeb tsa. Yog tias koj xav tau peb los muab cov kev pabcuam no, thov qhia rau peb paub ua ntej thiab peb yuav muab cov tshuaj zoo tshaj rau koj.
Q: Koj puas muab cov khoom siv?
A: Yog lawm, raws li cov chaw tsim khoom, peb tuaj yeem muab tag nrho cov khoom siv cuam tshuam.
Q: Koj tuaj yeem lav qhov zoo li cas?
A: Peb yuav niaj hnub kuaj xyuas qhov zoo thaum lub sijhawm tsim khoom, thiab nruj me ntsis kuaj cov khoom ua ntej xa khoom, thiab peb tseem yuav xa daim ntawv pov thawj zoo rau koj.
Q: Koj lub sijhawm xa khoom ntev npaum li cas?
A: Hauv 10/25/40 hnub tom qab tau txais koj cov nyiaj them ua ntej; lub sijhawm txwv tshwj xeeb yog ua raws li cov cai tshwj xeeb thiab lub sijhawm txwv.
Q: Koj lub sijhawm lav ntev npaum li cas?
A: 36 lub hlis.
Q: Koj ntim li cas?
A: Lub cev tseem ceeb yog nyob rau hauv ib lub thawv plywood lossis cov ntaub qhwv yas; cov khoom siv yog nyob rau hauv lub thawv plywood.
