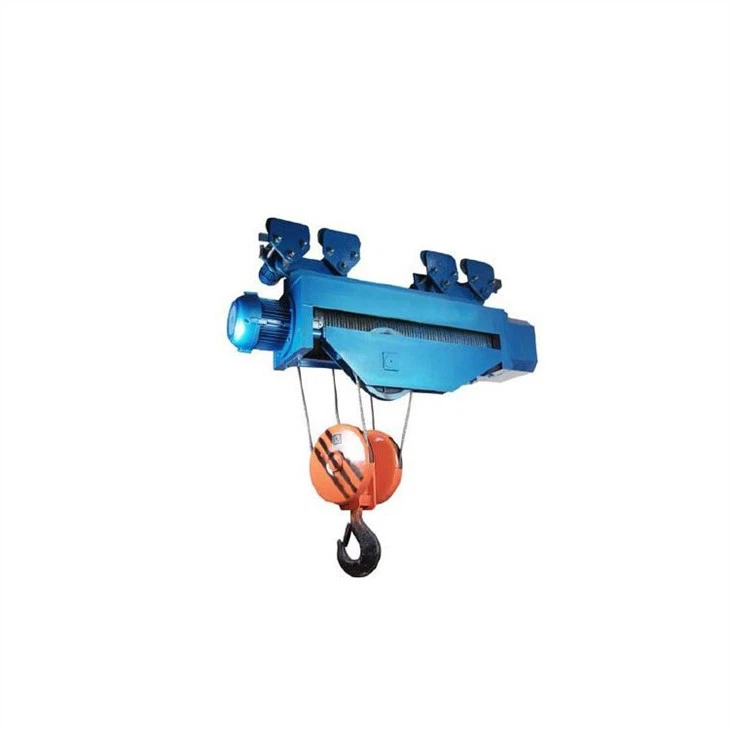

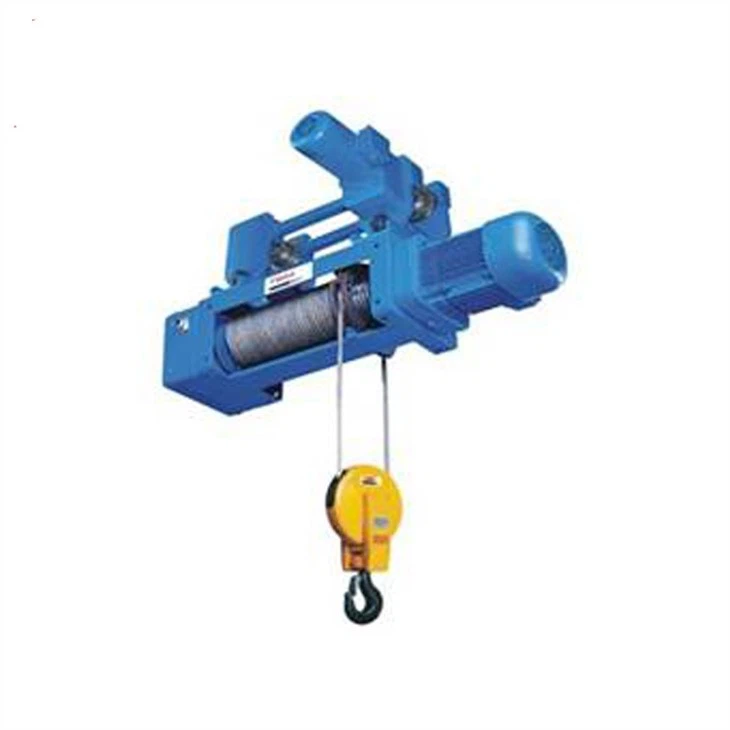

Monorail Girder Electric Hoist 3 Tuj
Lifting Peev Xwm: 0.5ton-32 ton
Voltage: 220V-440V
lus: 3
Lifting qhov siab: 6m-30m
Daim ntawv pov thawj: CE ISO
Xim: Customized
Qhov xwm txheej: Tshiab
Warranty: 3 Xyoo
Hauj lwm lawm
Monorail girder fais hoist 3 tuj Description
1 MD1 qauv hluav taws xob hoist cov lus qhia luv luv:
a.MD1electrichoist hlau hlua hoist yog lub teeb thiab me me nqa khoom. Nws yog dav siv nyob rau hauv lub Hoobkas, mine, chaw nres nkoj, warehouse, khw kom ua hauj lwm efficiency thiab tej yam kev mob.
b. Nws kuj yog siv los ua ob-girder hoist, gantry crane hoist lossis jib crane.
Motorized 2ton 3ton hlua hluav taws xob hoists Kos duab
Monorail girder fais hoist 3 tuj Parameters
| Muaj peev xwm | t | 16 | |||||
| Hoisting ceev | m/min | 3.5 | |||||
| Kev ceev ceev | m/min | 18 | |||||
| Lifting lub cev muaj zog | Hom | ZD 1 51-4/13kw | |||||
| Lub cev muaj zog | Hom | ZDY{{0}}/0.8kw × 2 | |||||
| Khiav | 32b~63c | ||||||
| Wirerope | Dia.(mm) | 15 | |||||
| Specification | 6 × 37 ntxiv rau FC | ||||||
| Hoisting qhov siab | m | 6 | 9 | 12 | 18 | 24 | 30 |
| Min curvature vojvoog | m | 3.5 | 4 | 6 | 8.0 | 11 | |
| Qhov hnyav (hom kev ua haujlwm) | kg | 1130 | 1183 | 1286 | 1463 | 1563 | |
| Qhov hnyav (ntev hom) | kg | 850 | 903 | 1006 | 1183 | 1283 |
Monorail girder fais hoist 3 tuj Hoist nta
Compact qauv, lub teeb, me me nyob rau hauv loj, qhov chaw versatility yuav pauv siv. Nws muaj peev xwm nqa loj, thiab kho yooj yim.
MD1 hluav taws xob hoist muaj ob qho tib si ceev thiab qeeb nqa ceev, nqa tau ruaj khov thiab ua haujlwm yooj yim.
(6) Txuag hluav taws xob specifications.
Hluav taws xob hlau hlua Hoist 5 tuj Paub meej
Pob thiab xa khoom
■ Txheem ntim ntim
■ Raws li cov neeg siv khoom xav tau
■ Lub Sij Hawm xa tuaj hauv 25 hnub tom qab them nyiaj
FAQ
Q. Dab tsi yog cov ntaub ntawv kuv yuav tsum muab thaum nug?Ntau cov ntsiab lus lossis kos duab, zoo dua.
A: Lift muaj peev xwm B: nqa qhov siab C: Ceev Thov D: lub zog los yog lwm yam tshwj xeeb uas koj muab rau peb yuav txaus siab dua.
Q. Muaj pes tsawg txoj kev khiav hauj lwm rau kuv xaiv? qauv kev khiav hauj lwm txoj kev:
A: pendent maub los nrog laub khawm .B: chaw taws teeb tswj nrog laub khawm Xaiv txhua yam raws li koj nyiam.
Q. Hom no puas tuaj yeem ua haujlwm hauv ib puag ncig txaus ntshai?
A: Yog lawm! Peb tuaj yeem hloov kho rau koj, kua qaub lossis pov thawj tawg, tsis muaj teeb meem rau qhov ntawd.
Q. Koj puas tuaj yeem muab cov cuab yeej nqa hnyav?
A: Kom paub meej, peb tuaj yeem muab cov cuab yeej nqa nqa xws li nqa sling siv, nqa clamp, rub, hlau nplaum lossis lwm yam tshwj xeeb raws li koj xav tau!
Q. Peb tuaj yeem nruab lub crane li cas?
A: Peb tus kws tshaj lij engineer tuaj yeem yog koj sab los ua cov kev pabcuam kev cob qhia thiab kev cob qhia. Ntxiv mus, peb qhov muag zoo tshaj plaws tuaj yeem tuaj xyuas koj lub tebchaws.
Q. Kev nyab xeeb khoom siv
A: Overload limiter, Limit Switch (lifting and travel), Interlock tiv thaiv ntaus ntawv.
