Hluav taws xob hlau hlua Hoist 3 Tuj
Lifting Peev Xwm: 0.5ton-32 ton
Voltage: 220V-440V
lus: 3
Lifting qhov siab: 6m-30m
Ntawv pov thawj: CE ISO
Xim: Customized
Qhov xwm txheej: Tshiab
Warranty: 3 Xyoo
Hauj lwm lawm

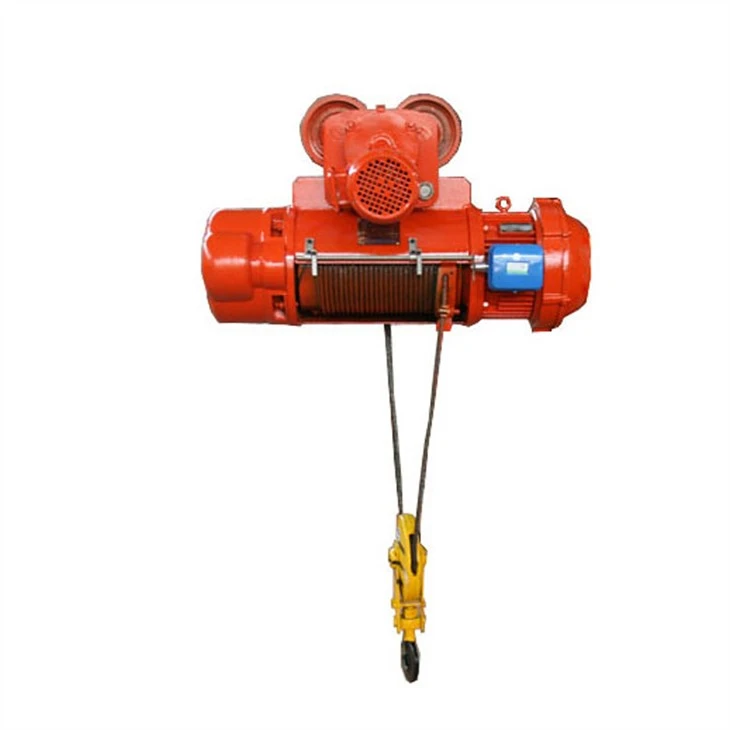

Hluav taws xob hlau hlua hoist 3 tuj Description
CD1 MD1 1 Tuj 2 Tuj 3 Tuj 5 Tuj Hlau Rope Electric Hoist nrog Wireless Controller Fais Hoist Winch
Peb lub Hoobkas tuaj yeem tsim tau 1-50 tons ntawm hlau hlua hluav taws xob hoist, suav nrog CD thiab MD hom, qis taub hau hoist, HC hom loj qhov hnyav thiab qib ua haujlwm siab, HB / BHC tawg pov thawj hom, European hluav taws xob hoist thiab Chain hoist.
CD thiab MD hom hlau hlua hluav taws xob hoist yog ib yam khoom siv lub teeb thiab me me, uas tuaj yeem ntsia tau rau ntawm ib lub nqaj crane, choj crane, gantry crane, caj npab cranes, cantilever cranes, thiab lwm yam. .Nws yog dav siv nyob rau hauv factories, mines, harbors, warehouses, cargo cia chaw thiab khw.CD muaj ib tug ceev, MD muaj ob ceev.
Hluav taws xob hlau hlua hoist 3 tuj Kos duab
Hluav taws xob hlau hlua hoist 3 tuj Parameters
| Qauv | TY-II -3.2T | TY-II-5T | TY-II-10T | ||
| Qib ua haujlwm | M4 | ||||
| Rated Lifting Peev Xwm (kg) | 3200 | 5000 | 10000 | ||
| Lifting qhov siab (m) | 6,9,12,18,24,30,36 | ||||
| Lifting ceev (m / min) | Single Ceev 8 Ob Chav Ceev 8/13 | Tib Ceev 8Double Ceev 8/0.8 | Tib Ceev 6.3Double Ceev 6.3/0.63 | Tib Ceev 8Double Ceev 8/0.8 | |
| Kev khiav ceev (m / min) | 12.5/20 | ||||
| Fais fab mov | Peb theem 380V50Hz | ||||
| Kev suav ua haujlwm | Tsawg dua lossis sib npaug li 240 | ||||
| Main lub cev muaj zog | 4.5 KW 1380 rpm | 4.6 KW 2820 rpm | 7.5 KW 1400 rpm | 13 KW 1400 rpm | 15 KW 1400 rpm |
| Slow Motor | 0.63KW440rpm | 0.8KW1380rpm | 1.5 KW 1380 rpm | 1.5 KW 1380 rpm | |
| Khiav Tsav | 0.4KW1380rpm | 0.8KW1380rpm | 1.5 KW 1380 rpm | ||
| Box Structure Beam Rail Dav (mm) | 250-350 | 300-400 | 350-450 | ||
| Hlau hlua Code GB8918-1996 | 12NAT6 × 35W ntxiv rau NF1770ZS | 15NAT6 × 37W ntxiv rau FC160 ZS 130 | 20NAT6 × 37W ntxiv rau FC1870ZS |
Hluav taws xob hlau hlua Hoist 5 tuj Qhov zoo
(1) Safe Lifting Txoj hlua qhia tau txais cov hlau nplaum, uas muaj lub neej ntev kev pab cuam thiab kev ruaj ntseg nres tsim.
(2) Hook Lub Hook Cov khoom siv ntawm lub peev xwm loj LB025 ~ LB090 yog ua los ntawm cov qauv hlau alloy. Lub teeb yuag yog ua tiav yam tsis hloov nws qhov loj me, thiab nws muaj kev ntseeg siab dua thiab muaj kev nyab xeeb dua.
(3) Khoom siv hlau hlua Khoom hnav tsis kam, tawv tensile quab yuam, tsis yooj yim rau tawg, tsis yooj yim rau curl deformation, tsis tsuas yog tawv, nws corrosion kuj, hnav kuj tseem muaj zog heev.
Hluav taws xob hlau hlua Hoist 5 tuj Paub meej
Pob thiab xa khoom
■ Txheem ntim ntim
■ Raws li cov neeg siv khoom xav tau
■ Lub Sij Hawm xa tuaj hauv 25 hnub tom qab them nyiaj
FAQ
1. Yuav ua li cas txog tus nqi?
Peb trading module nqi yog rau siv xwb. Yog tias koj txaus siab, thov xa peb cov lus nug kom sai li sai tau thiab tos ntsoov yuav koom tes nrog koj.
2. Puas yog koj cov khoom tsim kho?
Yog lawm, vim tias kev ua haujlwm sib txawv, tag nrho peb cov khoom tuaj yeem kho raws li qhov xav tau kom ntxaws!
3.Yuav ua li cas muaj ntau yam kev khiav hauj lwm rau kuv xaiv?
Cov txheej txheem kev khiav hauj lwm peb muab yog pendent controller nrog laub khawm. Lub caij no, peb tseem tuaj yeem muab cov chaw taws teeb tswj nrog lub laub khawm. Koj tuaj yeem xaiv ib qho ntawm lawv, tsuas yog qhia peb!
4.Hais txog tus qauv?
Tus neeg yuav khoom yuav tsum muab tus nqi thiab kev thauj khoom, yog tias muaj ntau ntau ces tuaj yeem tig rov qab tag nrho tom qab tso qhov kev txiav txim.
5.Nws siv sijhawm ntev npaum li cas thiaj tau txais kuv daim ntawv xaj?
Txog 35 Hnub los ntawm peb tau txais cov nyiaj them poob haujlwm, 20 hnub rau cov qauv txiav txim.
6. Koj qhov kev lees paub zoo yog dab tsi?
Peb muaj cov khoom sib txawv uas tuaj yeem ua tau raws li tus qauv zoo sib txawv. Peb lub tuam txhab QC yuav kuaj cov khoom ua ntej xa khoom. Peb muaj 100 feem pua zoo lav rau cov neeg siv khoom. Peb yuav lav ris rau txhua yam teeb meem zoo.
7. Peb muaj qhov zoo li cas?
Kev paub nplua nuj: Peb muaj ntau tshaj 20 xyoo kev paub hauv kev lag luam no. Txhua yam ntawm peb cov khoom yuav tsum nruj me ntsis kuaj ua ntej xa khoom. Cov khoom tsis tsim nyog tsis raug tso cai rau kev xa khoom.
8. Yuav ua li cas txog qhov kev pab cuam tom qab muag?
Peb cog lus 1 xyoo lav, kev pab cuam lub neej! Peb muaj ib pab neeg muaj zog tshwj xeeb rau kev pab cuam tom qab muag. Peb tuaj yeem npaj cov engineers los ua kev pabcuam rau koj. Thiab peb hais tias 'Zoo yog Lub Neej'.
